Firetoys Freestanding Outdoor Aerial Rig - 5.5m - BigRig


€4.579,00
2 in stock
This item is not eligible for discounts
Description

The Firetoys Outdoor Aerial Rig is precision-engineered, fully UK-designed and manufactured, and independently strength tested. This 5.5m outdoor aerial A-frame is ideal for festivals, outdoor events, or even putting in the garden if you have one big enough!
This rig is suitable and certified for up to two people and has a Working Load Limit (WLL) of 174kg using Factor of Safety (FoS) 10:1.

Please Note- All pulleys, carabiners, ropes and apparatus pictured are sold separately. We've included these items in some of the images for illustration only.

Rigging Available Separately
Shipping & Returns Info
Orders under €200 Orders over €200
Economy: 3-5 working days €12.95 Free
Standard: 2 working days €19.95 €19.95
Priority: next working day See Checkout See Checkout

Full delivery info 60 day no quibble returns

Firetoys Sustainability Info
firetoys eco focus logoFiretoys is committed to sustainability.

We are passionate about reducing our impact on the environment. Read about our key achievements to date (including being 100% renewably powered) and our targets for the future in our Eco Policy
Aerial Safety

Aerial equipment should never be used unsupervised, please consult a professional.

Everything below assumes you have a suitable and safe rigging point, like a professionally installed rigging point or a reputable and rated freestanding rig. Not every home/studio will be the same, so we cannot advise on this part. If you haven’t established a safe rigging point, please do this first with the help of a structural engineer/experienced rigger/professional familiar with what you're hanging and where you're hanging it.

Check out our aerial blogs for more information.

Big Rig, Big Opportunities

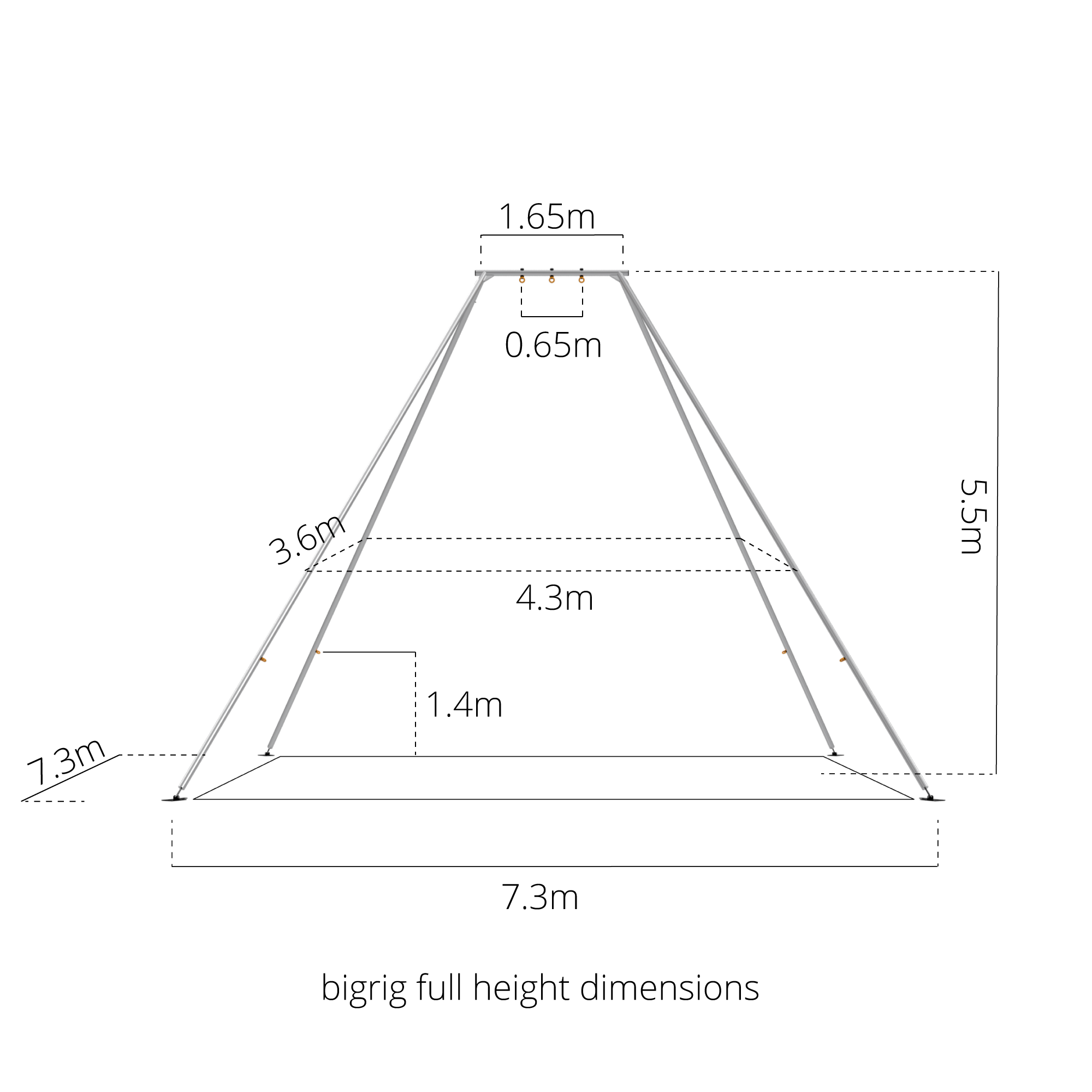

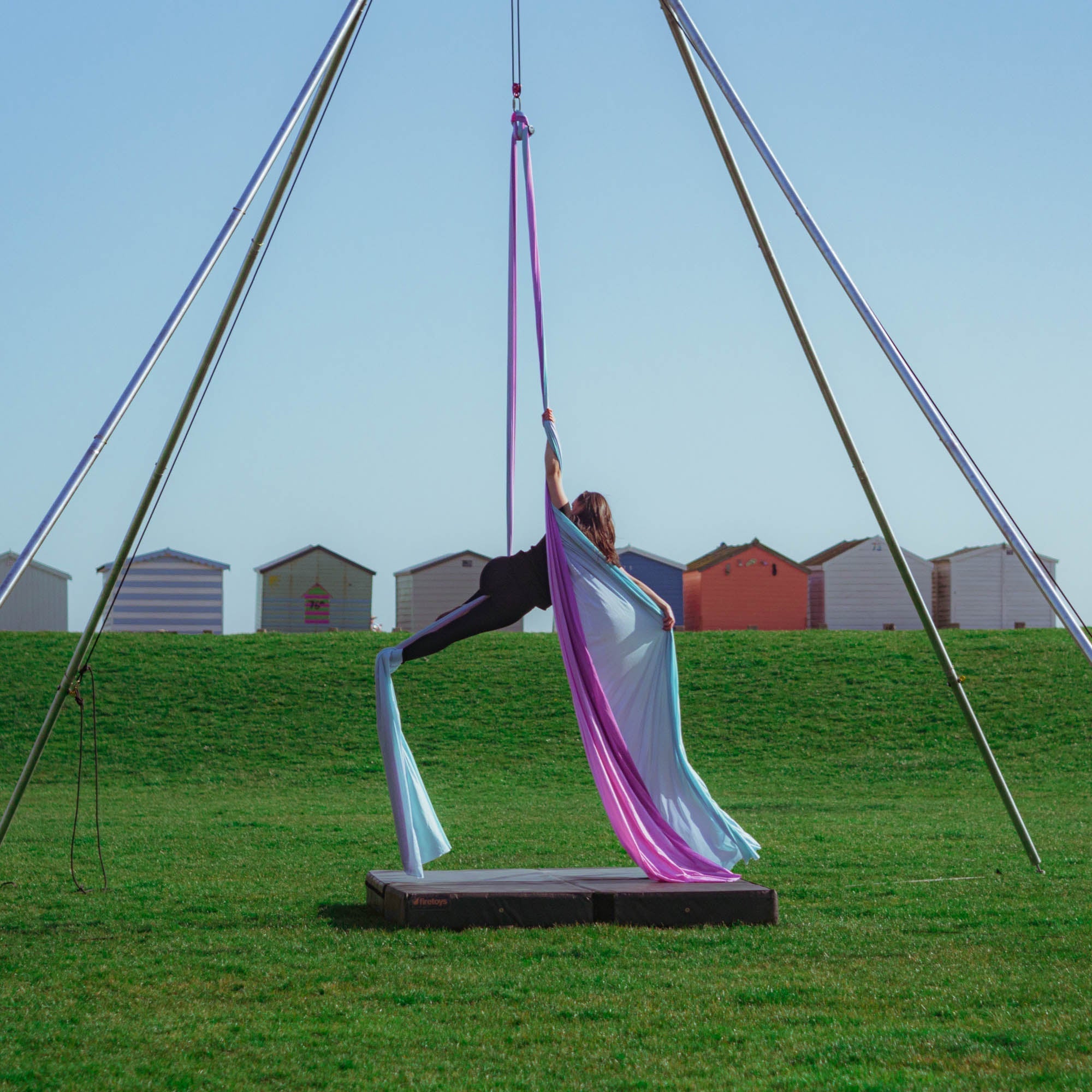

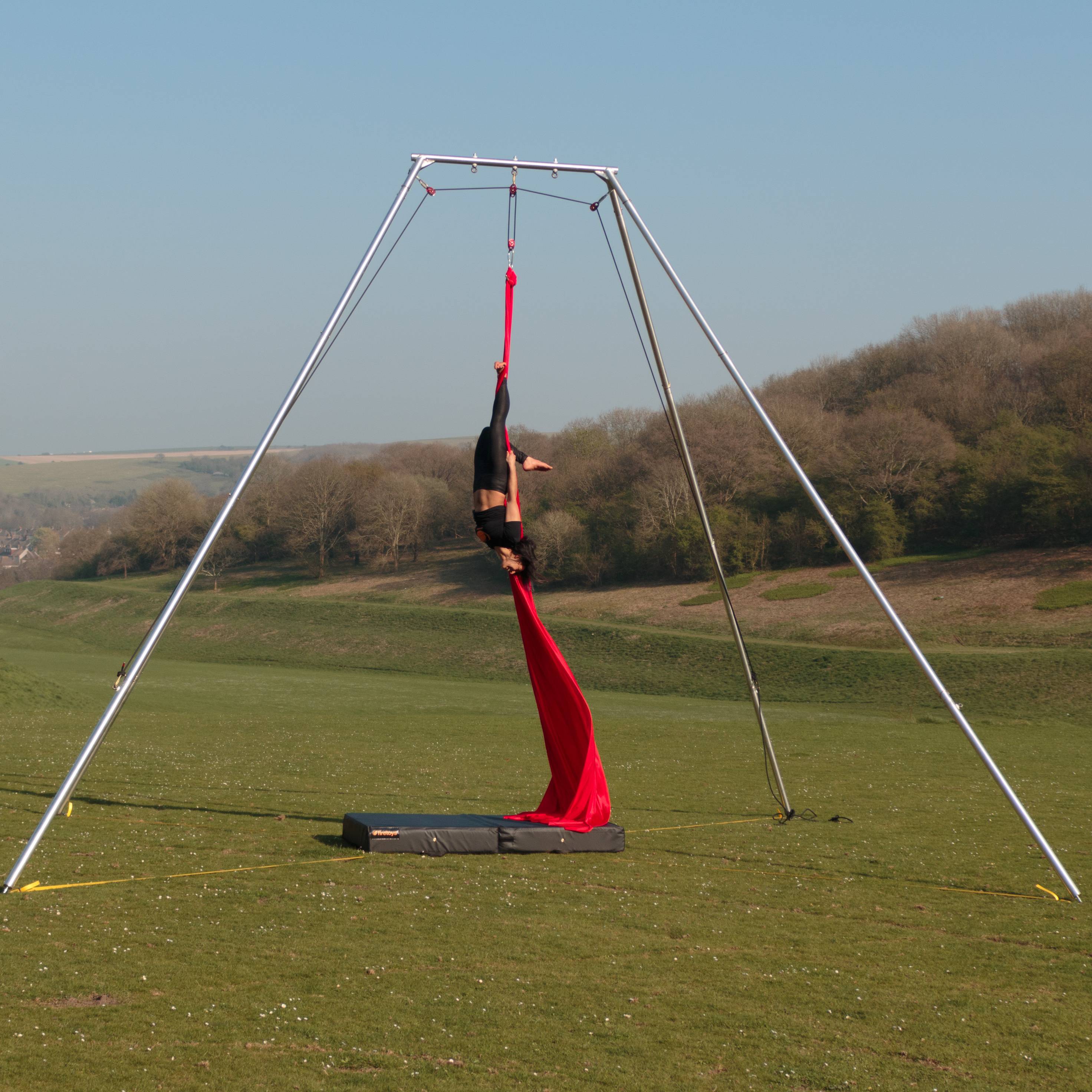

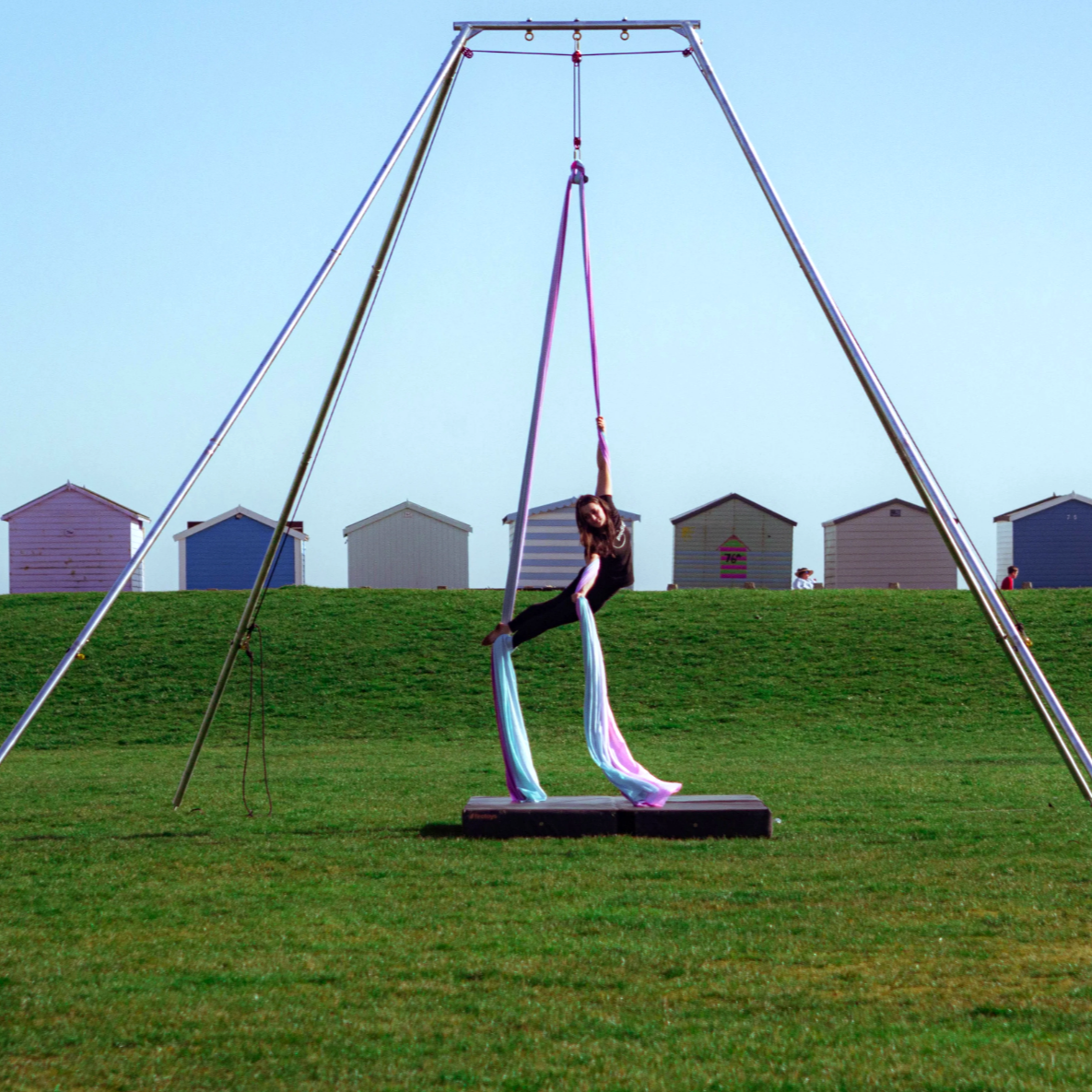

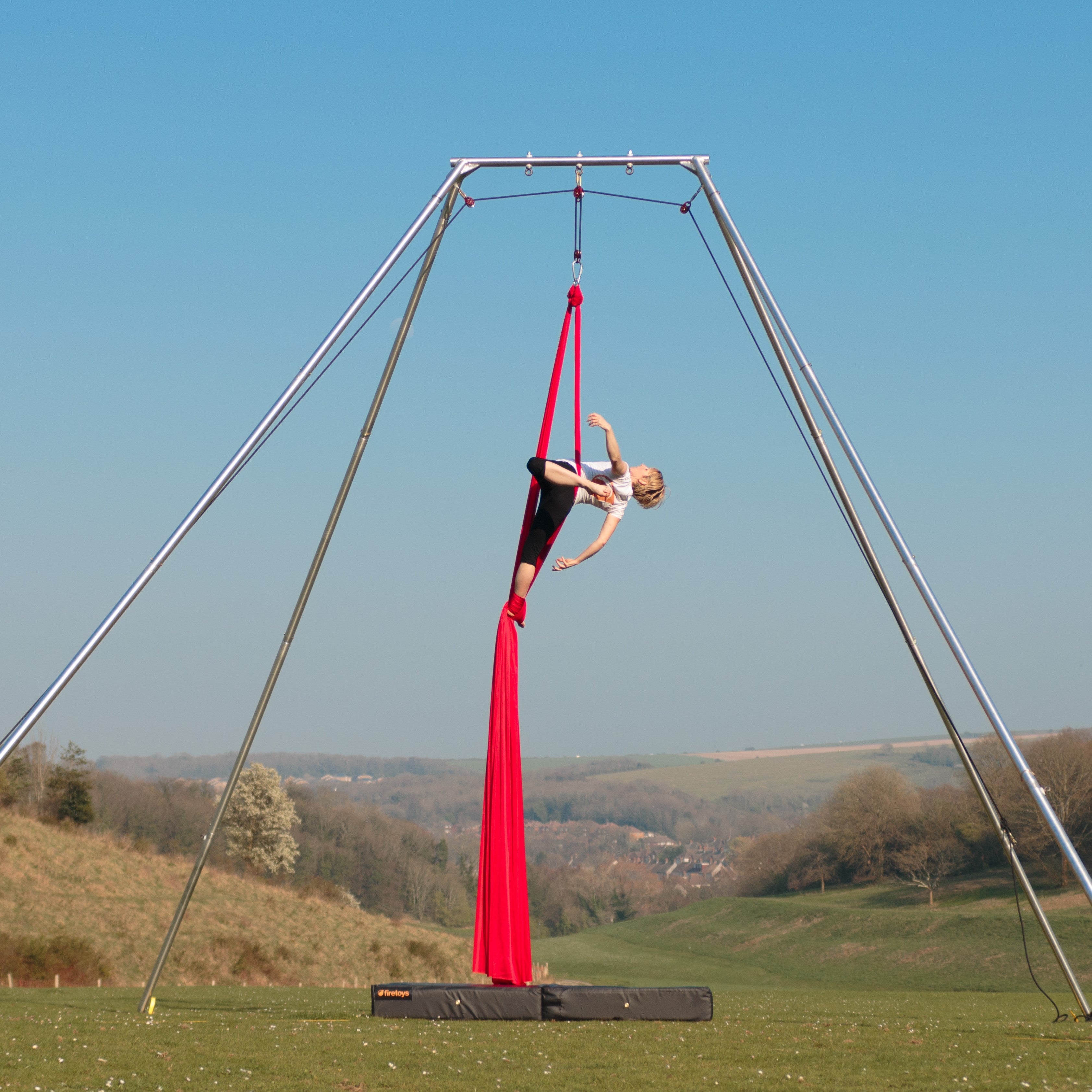

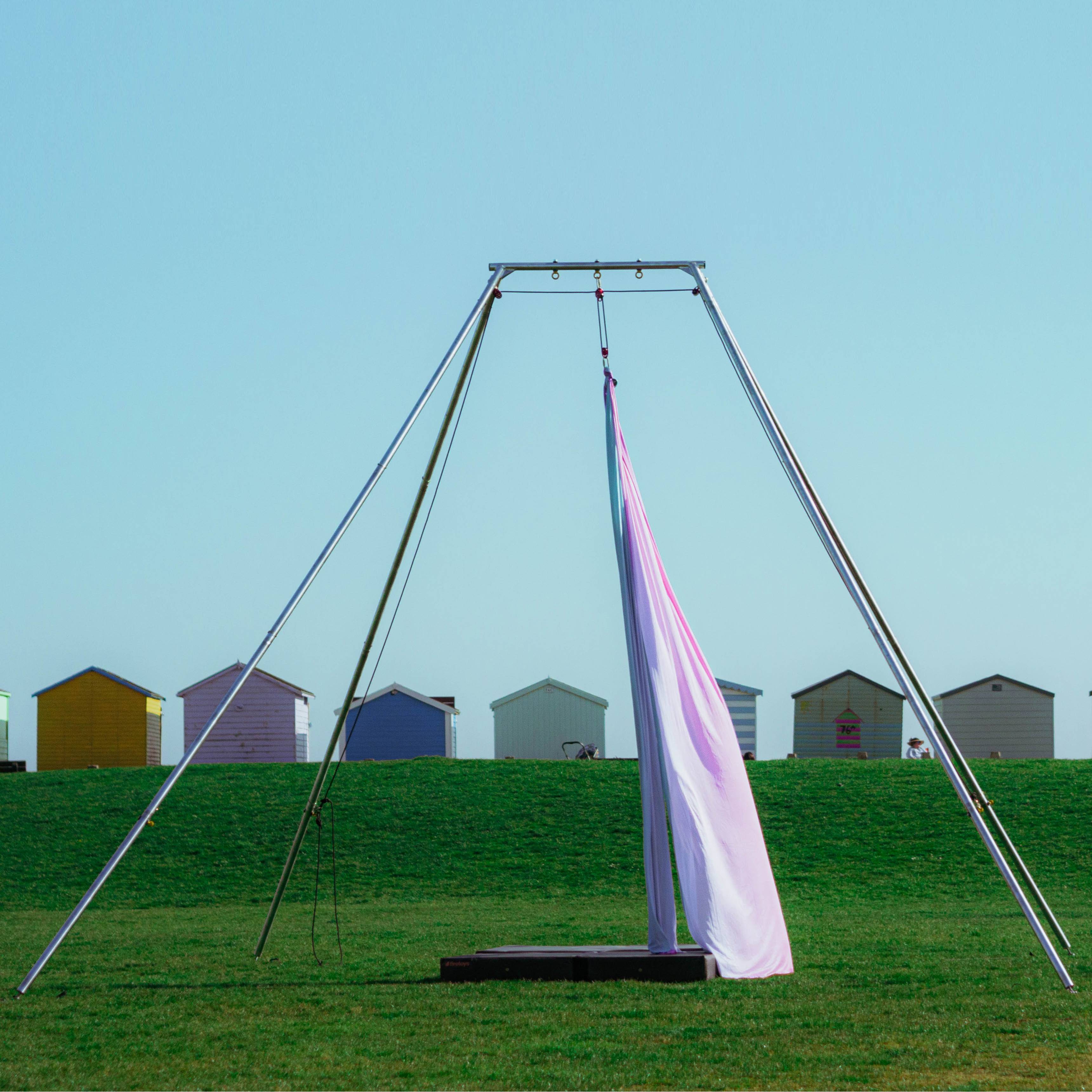

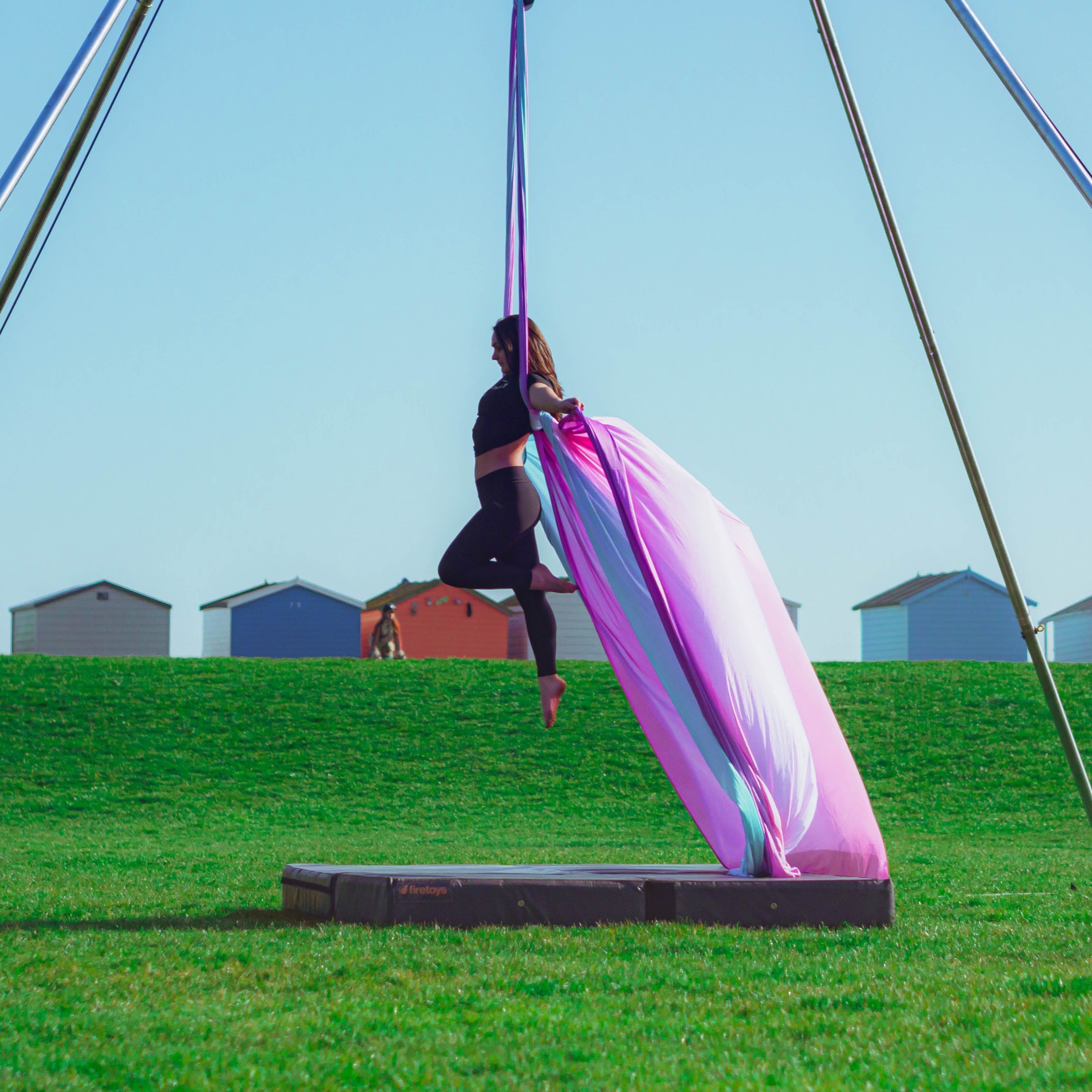

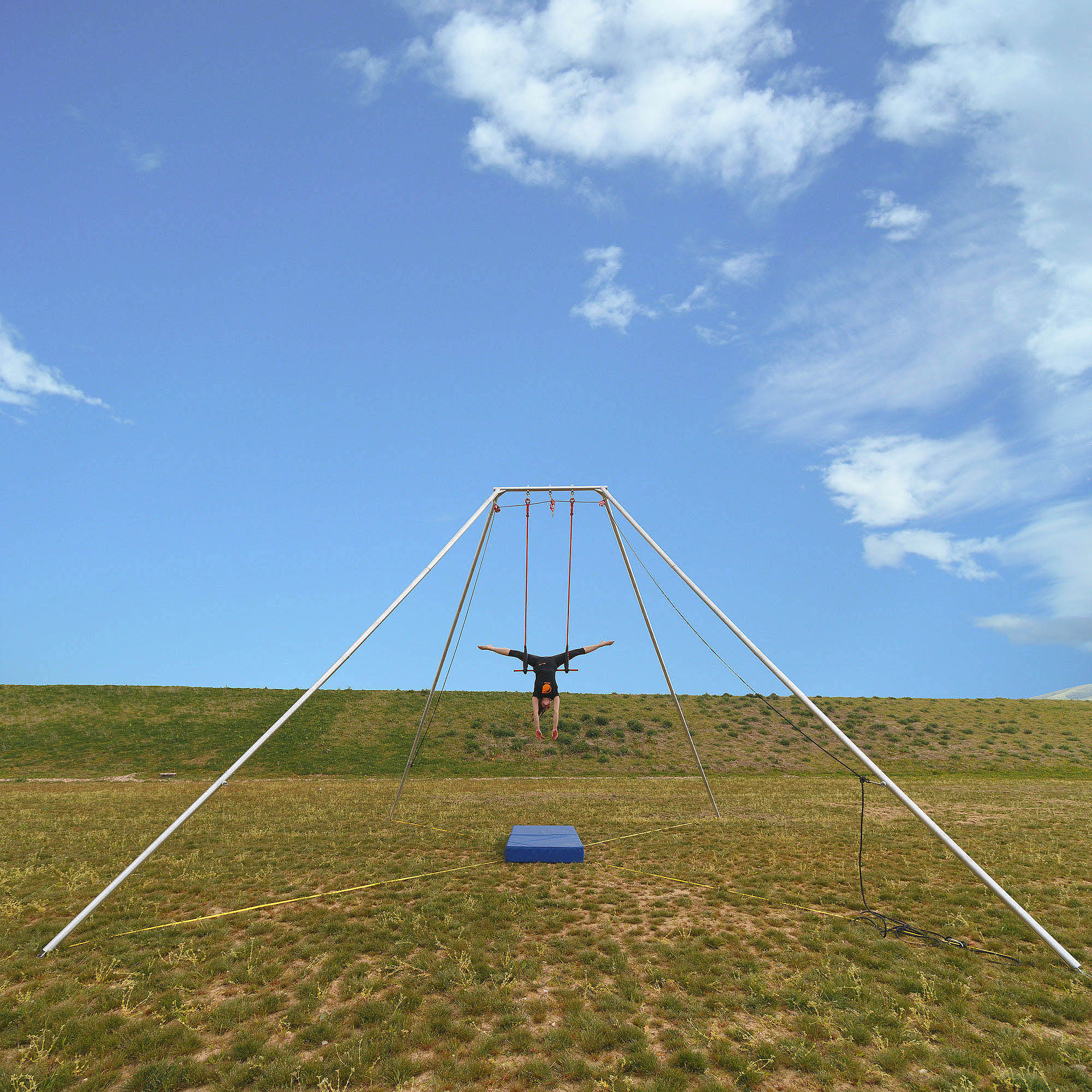

The Firetoys BigRig is a free standing outdoor aerial rig with three rigging points. Due to it's large frame, this precision-engineered aluminium rig is suitable for trapeze, aerial hoop (lyra), silks, corde lisse, and any other aerial apparatus. It's also strong enough for two-person training and performances. This rig resulted from 3 years of design, testing, and refinement and is one of Firetoys' most highly engineered products.

Spacious and Stable

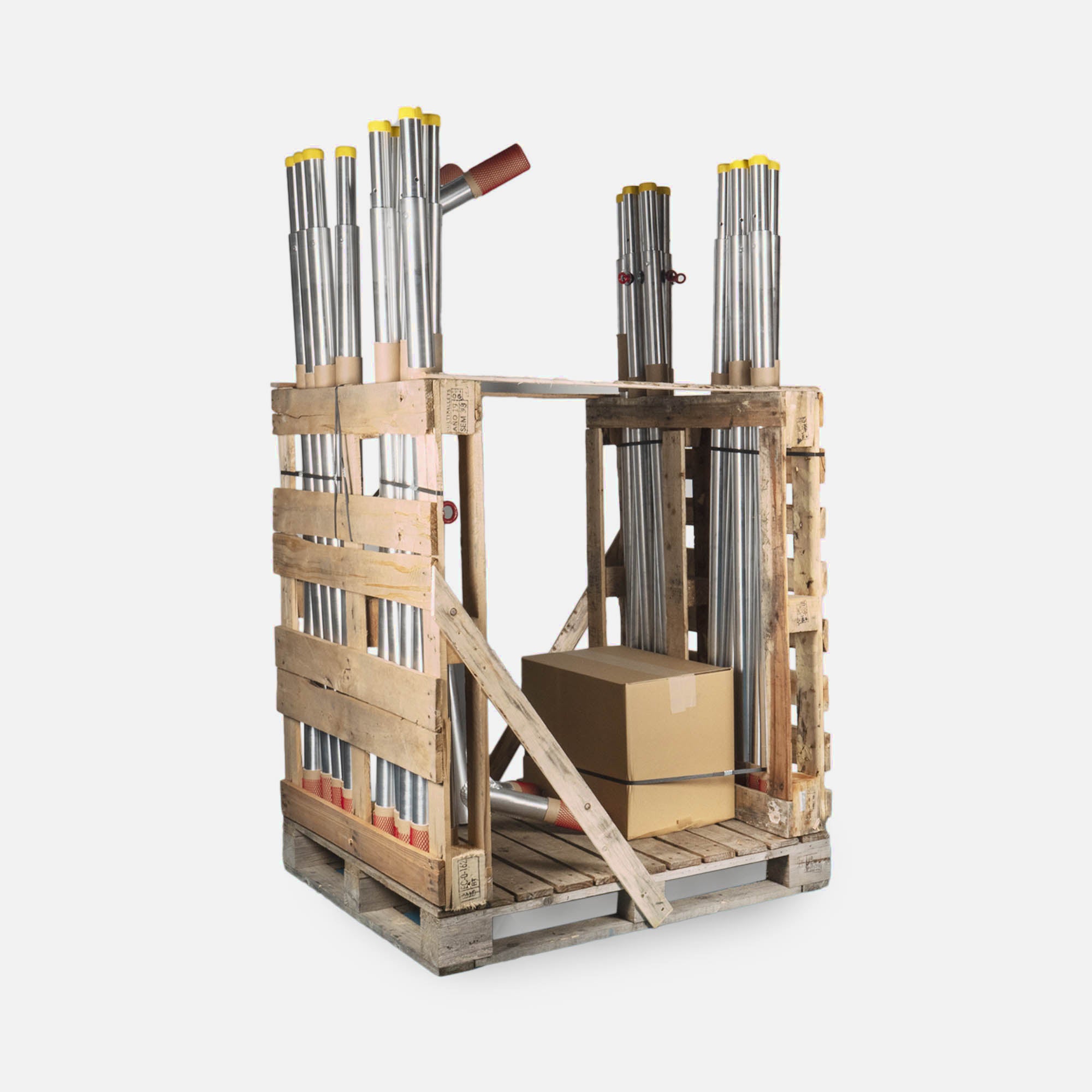

This top-spec freestanding A-frame won't sway or distort even under heavy loads. It's easily assembled and disassembled without tools and fits in most estate cars.

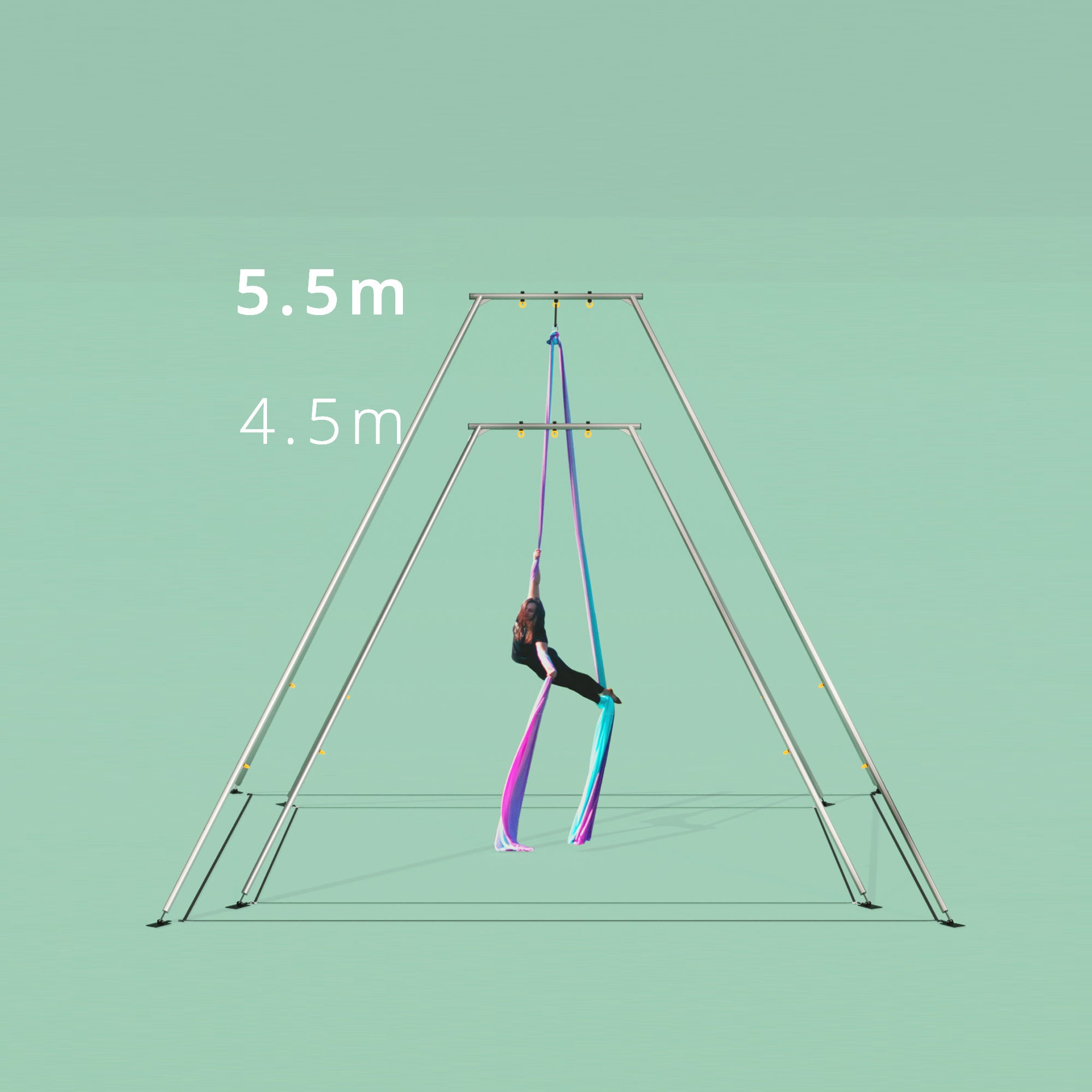

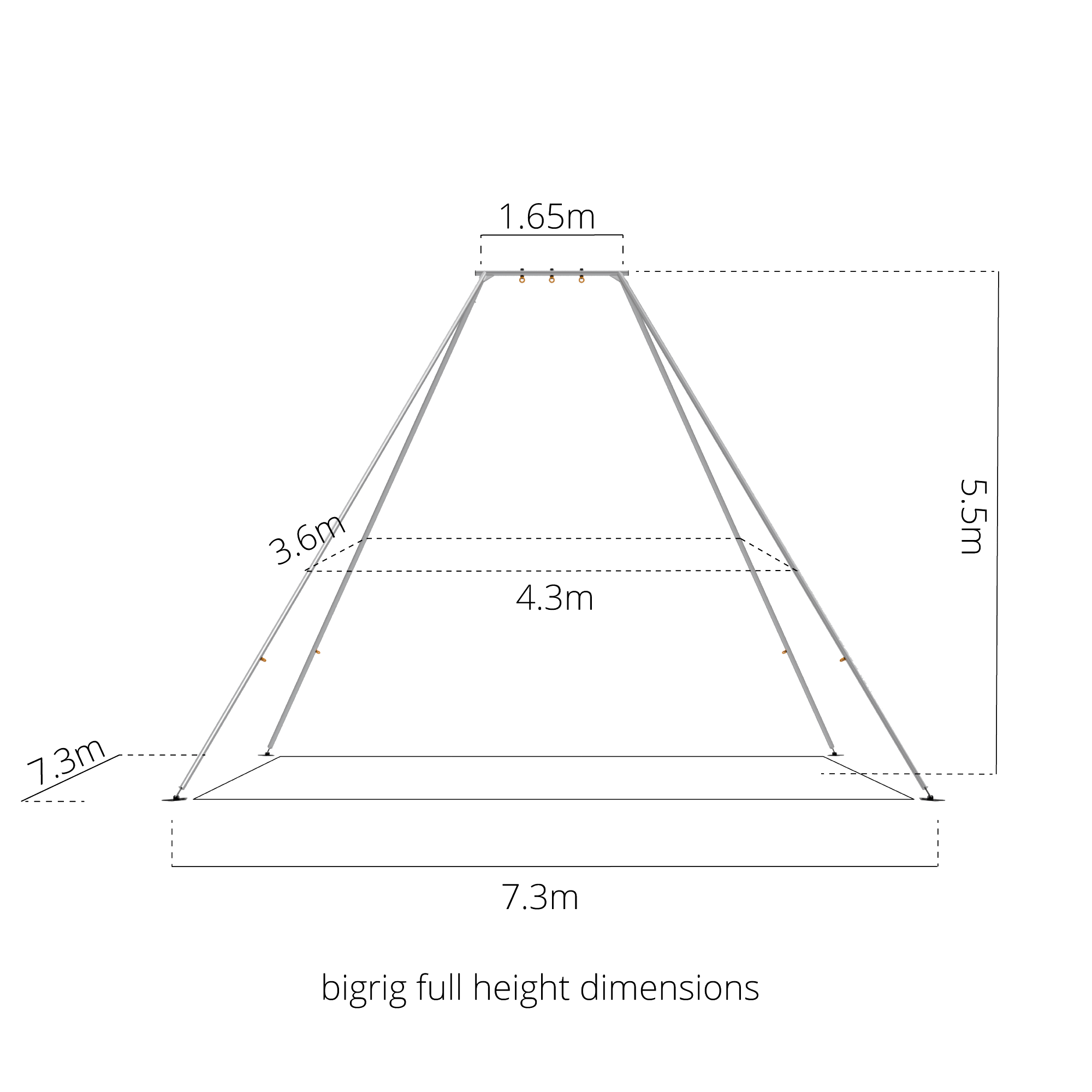

 This aerial rig has two rigging height options, a 5.5m rigging point height and a 4.5m rigging point height. The BigRig's footprint is 7.3m x 7.3m when set up for the 5.5m height. When set to the lower 4.5m height, the footprint is 5.4m x 5.4m. It's completely freestanding and braced, so it doesn't require pegs. This rig will not sway or distort even with heavy beating.

Indoor and outdoor

This rig's aluminium is corrosion resistant, making this trapeze rig suitable for permanent outdoor use.

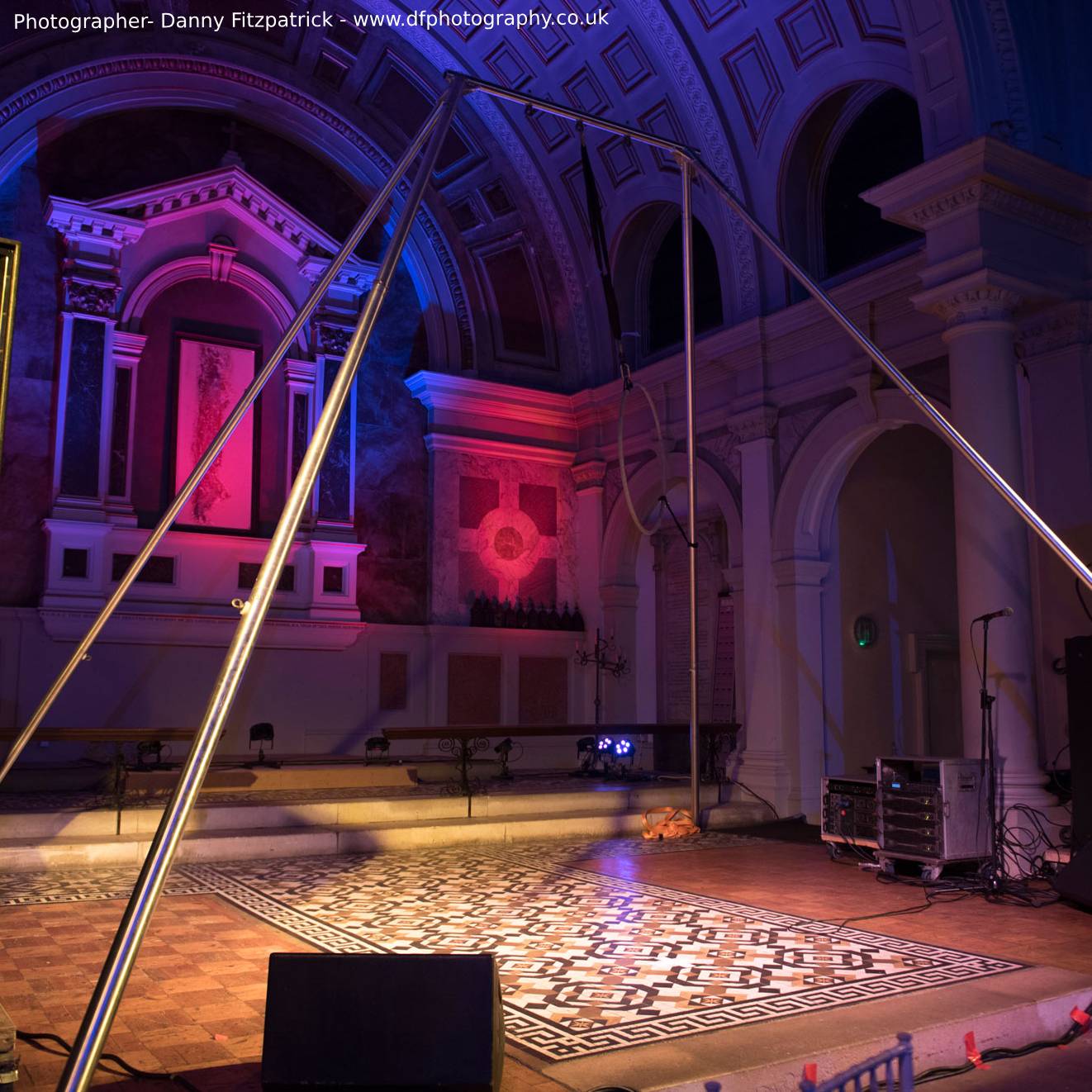

Though we built this A-frame to use outdoors, where no rigging points are found, it is perfect for use in any building where you can't rig to the existing structure. The grip on the base of the feet will provide traction without damaging floors, allowing it to be set up without issue.

The feet can be bolted to the floor if you intend a semi-permanent indoor installation.

Rigging Versatility

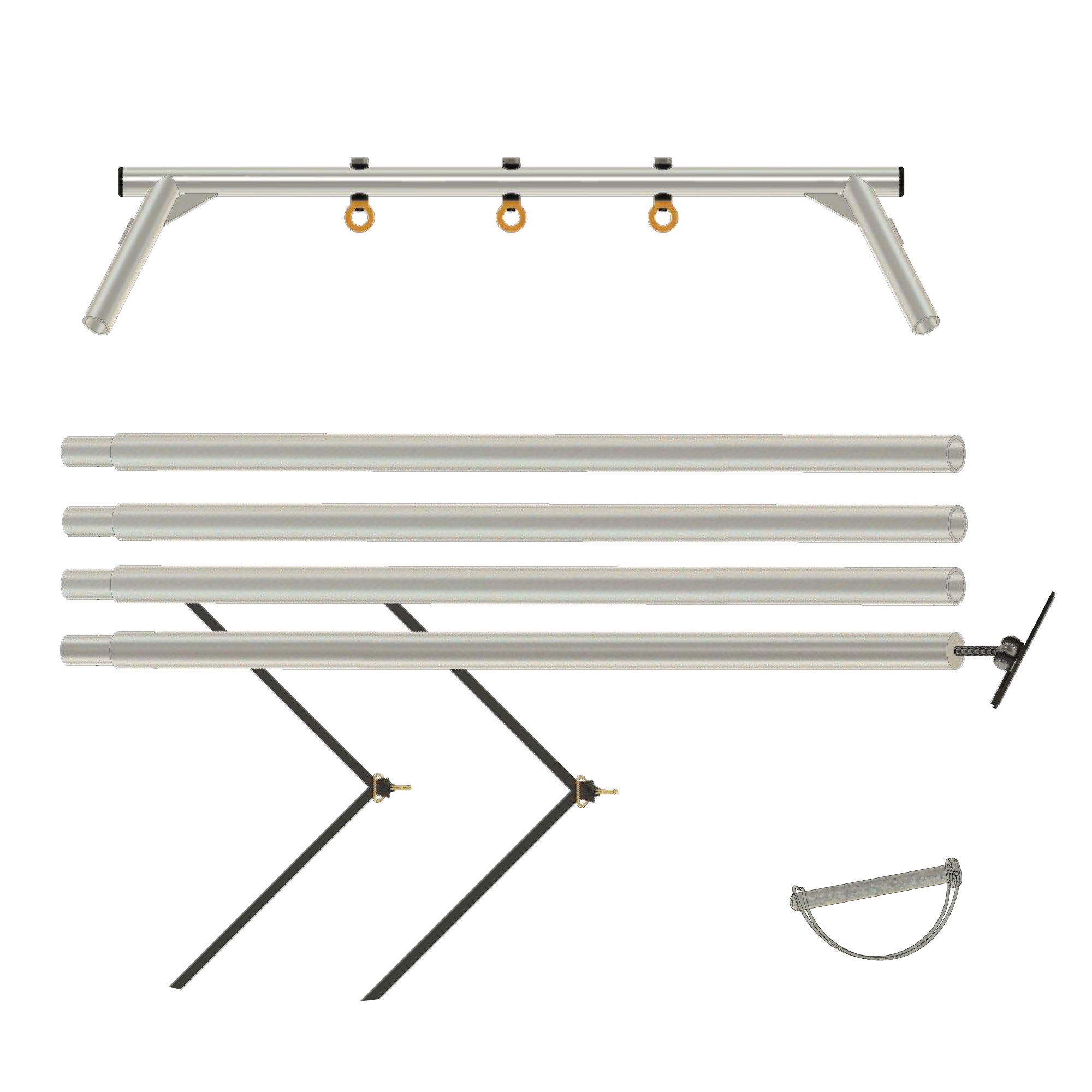

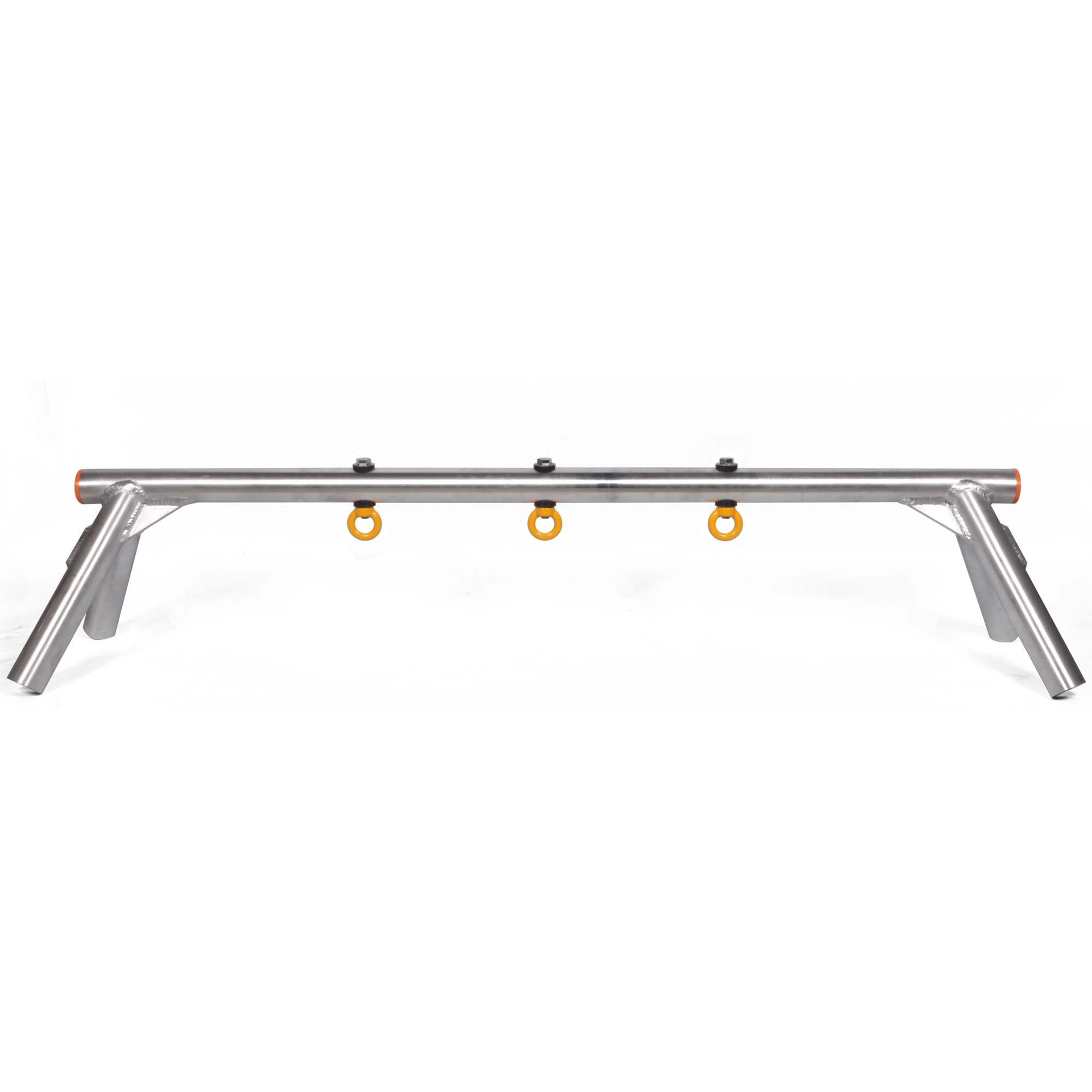

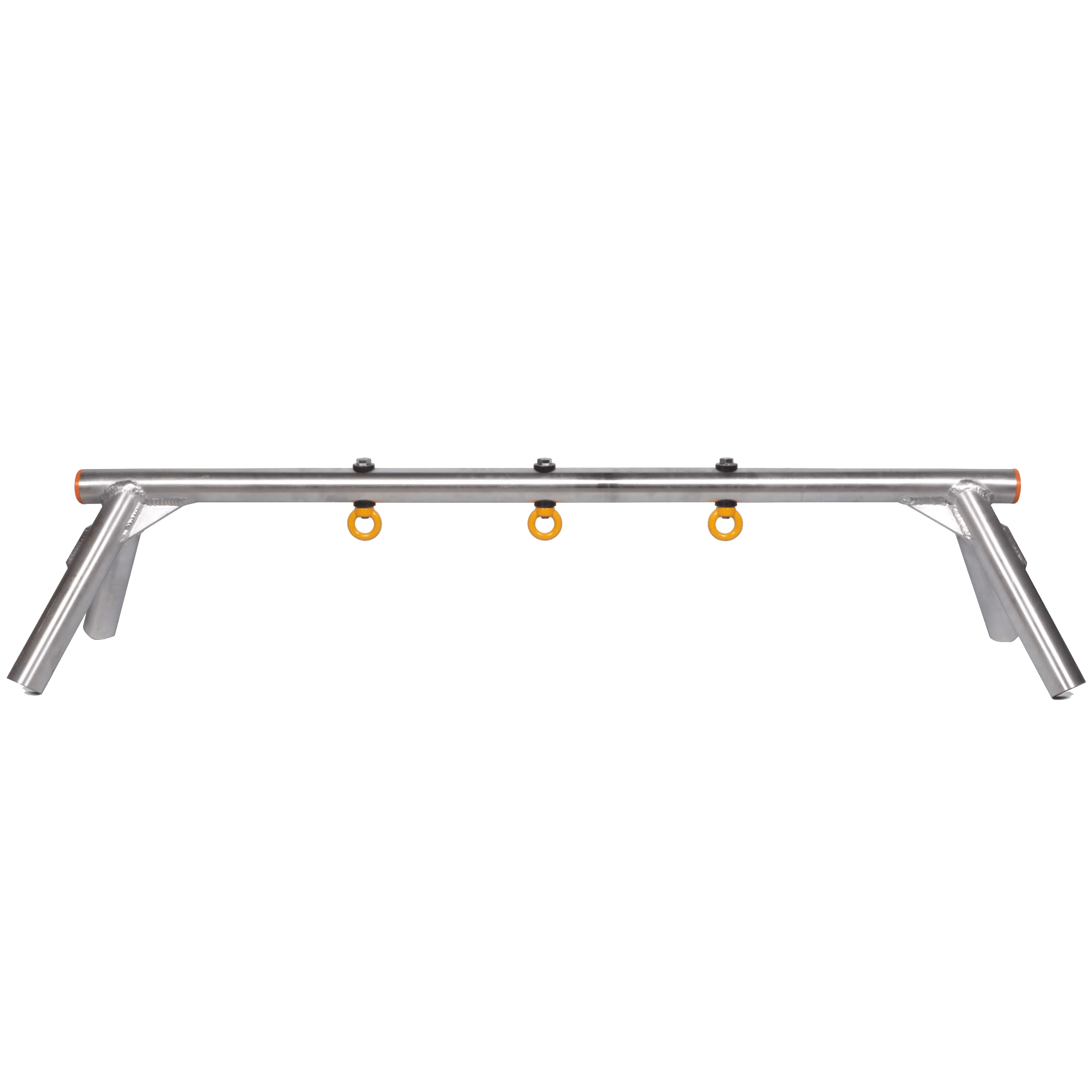

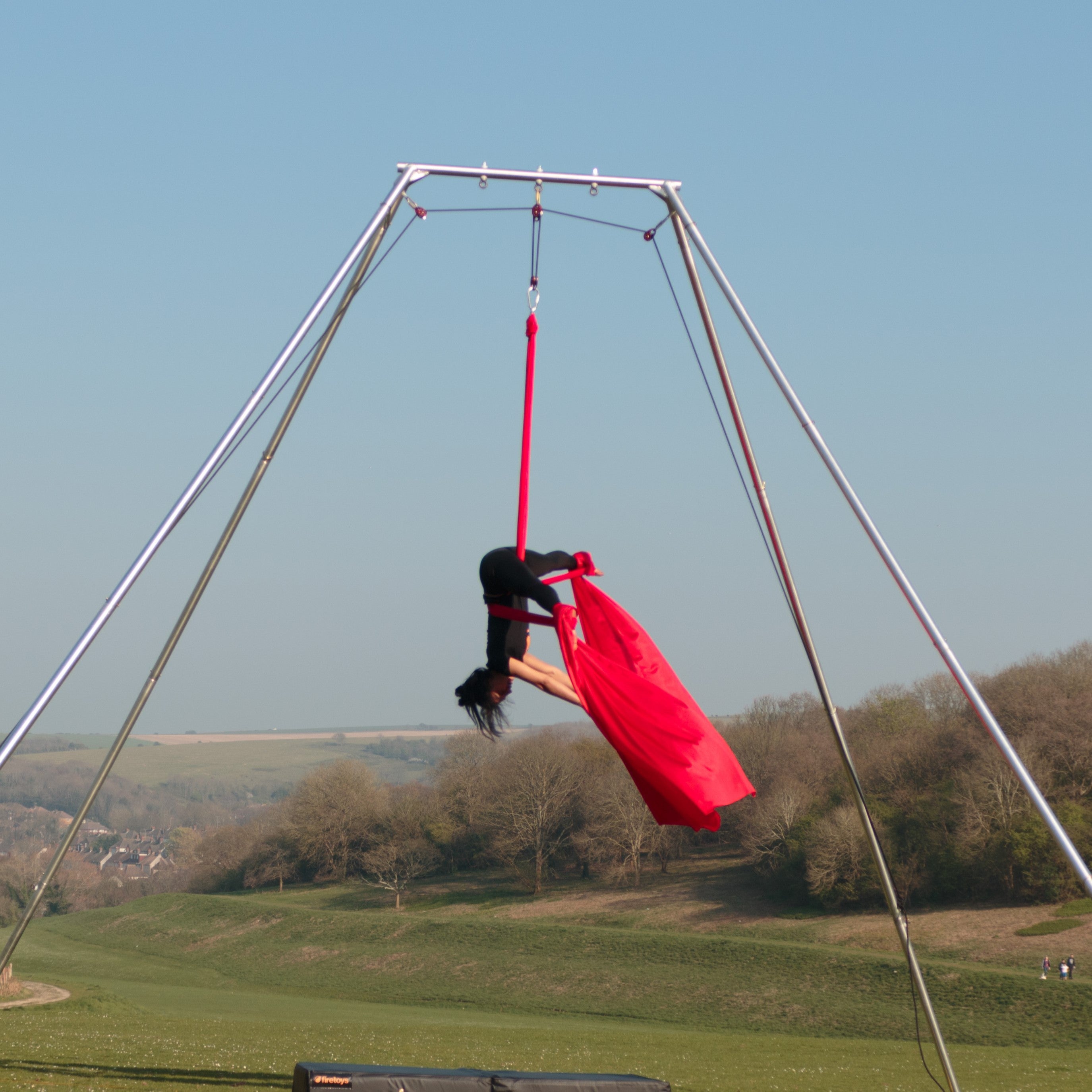

The crane bar has five rigging points: three central and two for safety lines and pulley setups. The crane features a central solid plug for load distribution. The legs all feature chest height connection points for tying off or connecting carabiners.

Construction

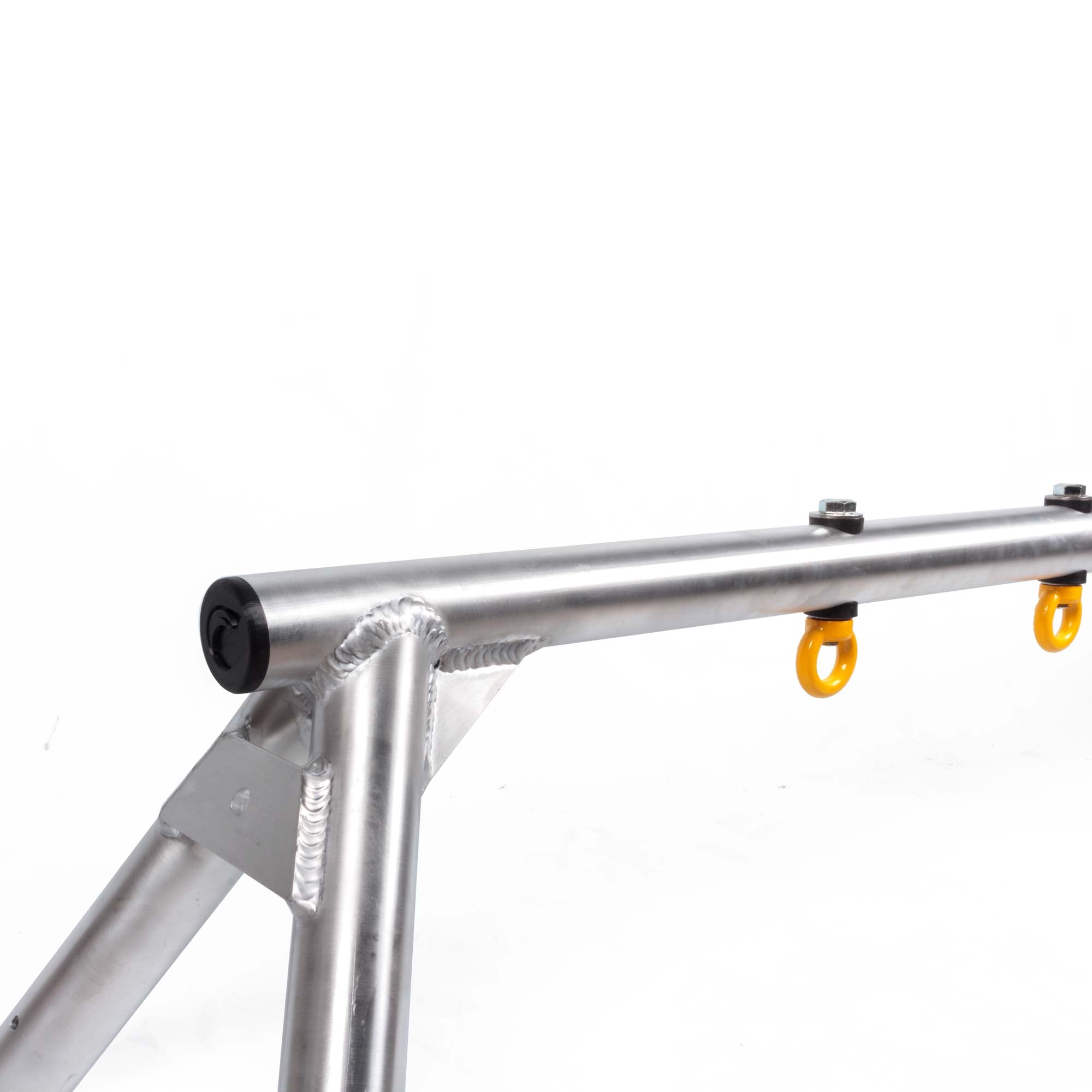

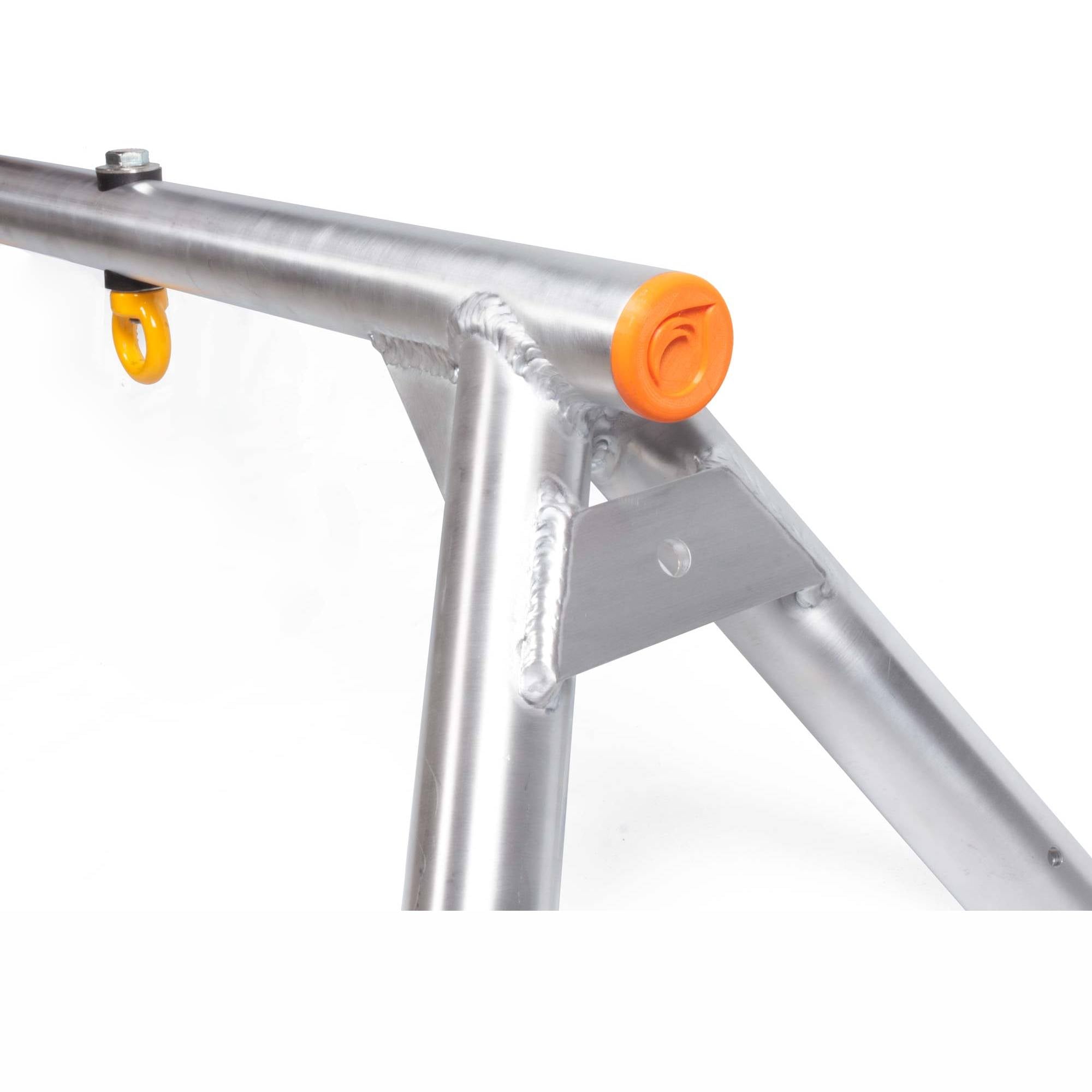

Our aerial rig has been fully CAD designed and engineered to give it the optimal strength to weight ratio. We have fully developed and manufactured these rigs in the UK. All parts are machined in-house to precise tolerances and all joins are engineered to ensure exact fits before welding. These include high precision twinned bird's mouth cuts and bespoke gusseting.

We've used 3 phase industrial TIG welding. This type of welding is achieves maxium tensile strength while providing aesthetically pleasing welds. All joins are triple welded for ultimate strength: a root pass, a second pass, and a weaved capping pass. "

Firetoys Big Rig assembly

Play

Tech Specs

The Firetoys BigRig has been fully strength tested and comes with certified working load limits (WLL). Destructive tests at an external professional load testing house were carried out to certify this rig. This gave us a WLL of 174kg at a safety ratio of 10:1.

We also performed extensive in-house dynamic load testing using fully calibrated load cells, imparting real-time forces of up to 1.74 kN. Certificates are available on request.

  • Base: 7.3m x 7.3m (24' x 24')
  • Height: 5.6m (18'5")
  • Top Bar Width: 1.67m (5'6")
  • Material: Polished Aluminium
  • Weight: 100kg (221 lbs)
  • Maximum Component Length: 1.9m (6'3")
  • Working Load Limit: 174kg (384 lbs)
